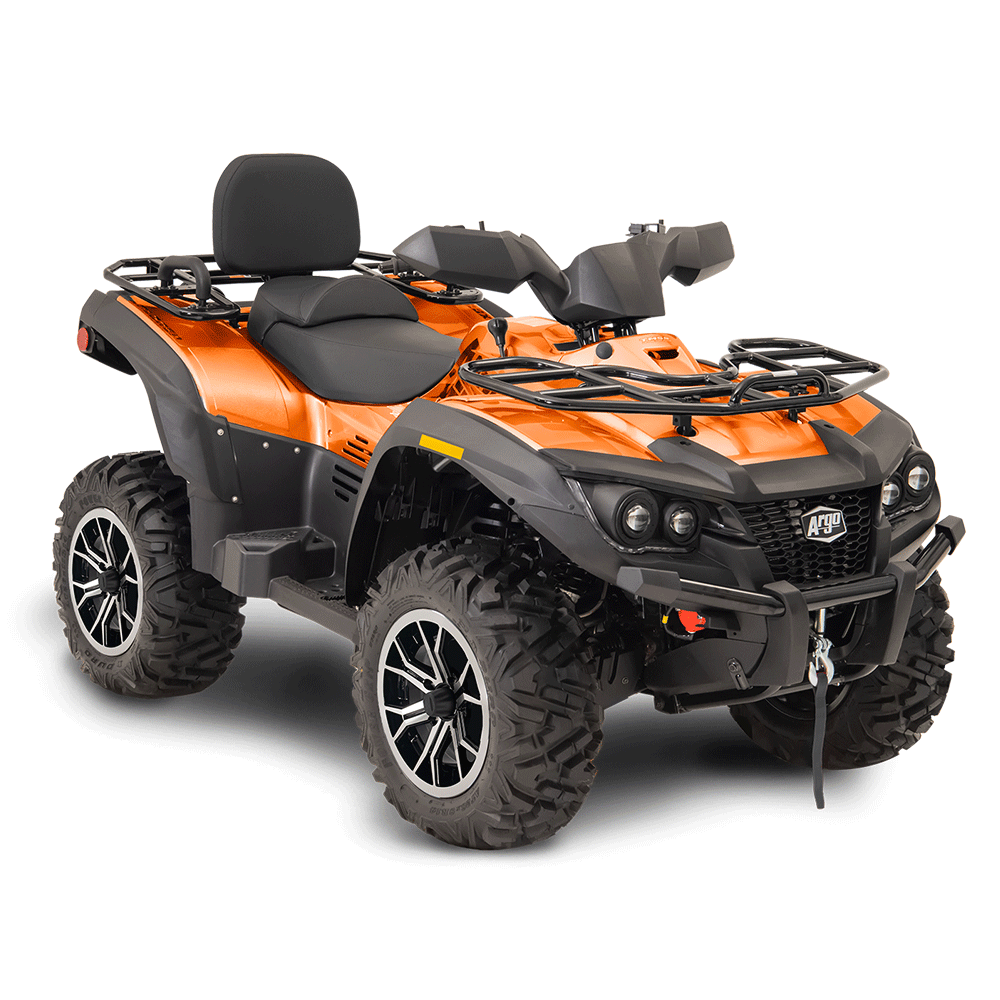

XPLORER XRT 1000 LE
THE POWER OF THE WOW FACTOR.
A dinner over a pork chop and loaded baked potato won’t bring you the excitement you’re looking for with your significant other. Get guaranteed energy, fun and excitement by riding the new ARGO Xplorer XRT 1000 LE 2-up out in the wild. Fresh air in the lungs and the get-up-and-go performance of our 997cc liquid-cooled engine will bring out those ear-to-ear smiles. Plus, the XRT 1000 LE will impress anyone before you even hit the throttle with 26" Duro tires with aluminum wheels, handguards and premium painted plastic body panels.
If you can’t get enough riding on those sun-soaked trails by day, experience a beautiful evening under the stars. Our dual hi/low beam headlights and taillights will keep you safe no matter when you ride. Now strap your gear on heavy-duty front and rear racks and watch what the wow factor can do to any relationship.
DISPLACEMENT | 997CC |
ENGINE STROKE | 4-STROKE |
CYLINDER ARRANGEMENT | SOHC TWIN CYLINDER |
VALVE CONFIGURATION | 4 VALVE |
FUEL SYSTEM | EFI |
COOLING SYSTEM | LIQUID |
BORE X STROKE | 92 X 75.0 MM |
COMPRESSION RATIO | 10.2 : 1 |
START METHOD | ELECTRIC START |
IGNITION | ECU |
OVER RIDE BUTTON | YES |
TRANSMISSION TYPE | CVT AUTOMATIC |
FINAL DRIVE | SHAFT DRIVE |
DIFFERENTIAL FUNCTION | FRONT & REAR DIFFERENTIAL |
DRIVE SYSTEM TYPE | 2WD/4WD/LOCK |
ELECTRIC DIFF LOCK | YES |
GEAR SELECTION | L/H/N/R/P |
REVERSE | YES |
ENGINE BRAKING SYSTEM (EBS) | STANDARD |
LENGTH | 92.1 IN. (2,340 MM) |
WIDTH | 49.4 IN. (1,255 MM) |
HEIGHT | 49.8 IN. (1,265 MM) |
SEAT HEIGHT | 37.4 IN (950 MM) |
GROUND CLEARANCE | 9.8 IN (250 MM) |
WHEELBASE | 57.5 IN (1,460 MM) |
TOWING CAPACITY | 1,225 LB (557 KG) |
DRY WEIGHT | 968 LB (440 KG) |
WET WEIGHT | 1,007.6 LBS (458 KG) |
FUEL TANK CAPACITY | 6.1 GAL (23 L) |
RIDER CAPACITY | 2 |
SUSPENSION - FRONT | INDEPENDENT DOUBLE A-ARM |
SUSPENSION - REAR | INDEPENDENT DOUBLE A-ARM |
SUSPENSION TRAVEL - FRONT | 8.7 IN (220 MM) |
SUSPENSION TRAVEL - REAR | 10.4 IN (265 MM) |
BRAKE - FRONT | HYDRAULIC DISC |
BRAKE - REAR | HYDRAULIC DISC |
FOOT BRAKE | 2 WHEEL REAR BRAKE |
TIRE SIZE (FRONT) | AT26X8-14 (DURO) |
TIRE SIZE (REAR) | AT26X10-14 (DURO) |
WHEEL RIM | ALUMINUM |
ELECTRIC POWER STEERING | YES |
BATTERY | 12V 18 AH AGM |
FRONT RACK | 99 LB (45 KG) |
REAR RACK | 165 LB (75 KG) |
FRONT BUMPER | YES |
HITCH | STANDARD/2" RECEIVER |
WINCH | 3,000 LB WINCH |
HAND GUARD | YES |
12V CHARGER | DC 12V 10A 120W X2 |
DAYLIGHT STRIP | STANDARD |
SKID PLATE | PLASTIC |
PASSENGER HANDLES | YES |
PASSENGER BACKREST | YES |
STORAGE | FRONT FENDER X2 |
FRONT BRUSH GUARD | ACCESSORY |
REAR BUMPER | N/A |
FRONT RACK EXTENTION | N/A |
REAR RACK EXTENTION | N/A |
USB CHARGING PORT | N/A |
REAR BOX STORAGE | N/A |
INSTRUMENTATION | DIGITAL INSTRUMENT PANEL WITH ODOMETER, SPEEDMETER, TRIPMETER, RPM, TRANSMISSION POSITION, FUEL GAUGE, HI-TEMP/LOW-BATT LIGHTS, HIGH BEAM LIGHT, EFI CHECKING, DIFFERENTIAL INDICATOR, 2WD/4WD INDICATOR, EPS INDICATOR |
LIGHTING | DUAL 60W LOW/HIGH BEAM LIGHTS, DUAL BRAKELIGHTS, TAILLIGHTS |
COLOR | PAINTED FLAME ORANGE OR PAINTED GRAPHITE GREY |
