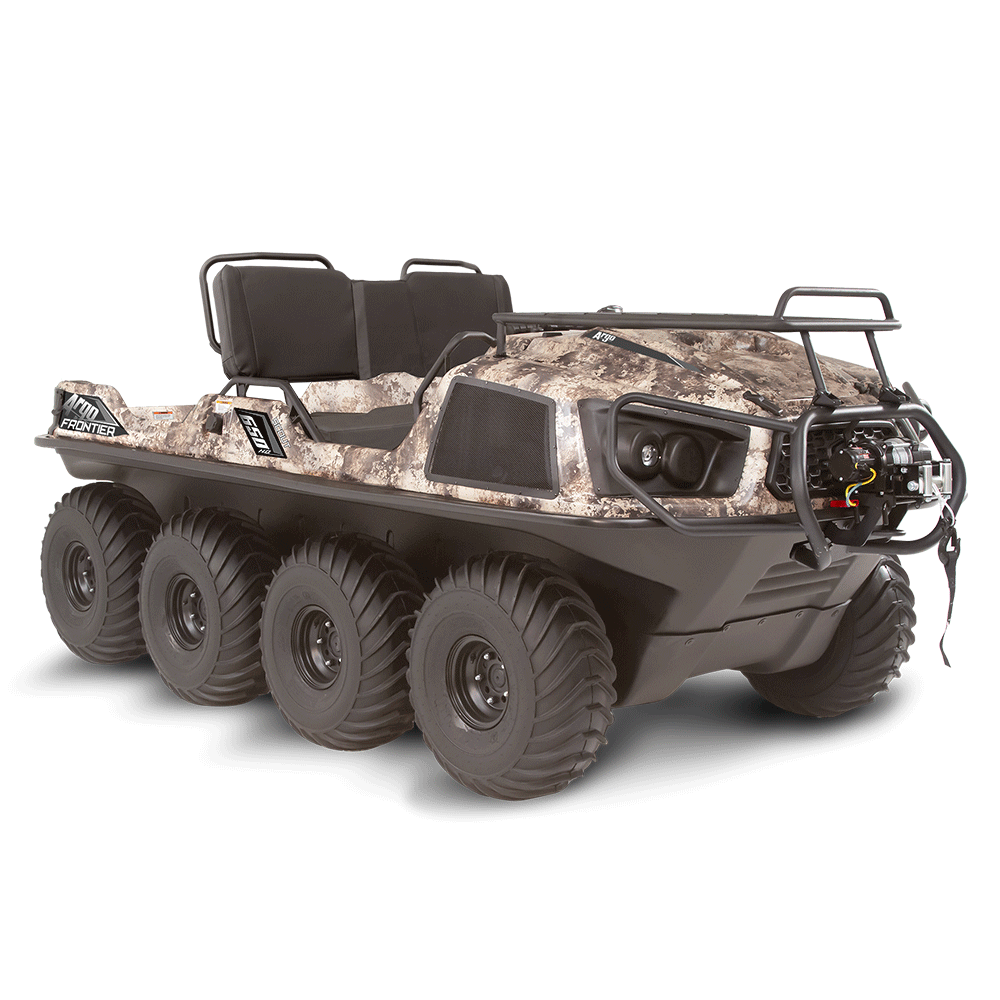

FRONTIER 650 HO 8X8 SCOUT
DON'T FORGET WHERE YOU PARK IT.
There’s nothing quite like the hunting opener. Hunters dream all year long of being back out in the woods with family and friends eager to bring home a new story to share. Start your season off with new gear — the 2024 Frontier 650 HO 8x8 Scout. You’ll be glad you did.
There’s plenty of room for your buddies in back or for gear to strap onto the front steel rack. Then drive as the crow flies to your spot you’ve called your second home for years, if not decades, and experience the high-output (HO) V-Twin engine and the amphibious capability. Good luck this season, and make sure to remember where you park the Frontier 650 HO 8x8 Scout, because with TrueTimber® Prairie camo, it will be hard to find.
| ENGINE | LX 650 |
| CYLINDER | V-TWIN |
| FUEL SYSTEM | CARBURETOR |
| COOLING | FAN COOLED |
| ALTERNATOR OUTPUT (MAX) | 20 AMPS |
| CHASSIS | 8X8 |
| SERVICE BRAKES | HYDRAULIC |
| STEERING BRAKES | HYDRAULIC |
| AUTO CHAIN LUBRICATION | ACCESSORY |
| EASY ACCESS GREASE SYSTEM (EAGS) | STANDARD |
| BRAKE COOLING FAN | ACCESSORY |
| TRANSMISSION | CLASSIC W/APS |
| DRIVE BELT | STANDARD |
| FULL SKID PLATE | STANDARD |
| BRUSHGUARD | STANDARD |
| WINCH | 2500 LB |
| FRONT RACK | STANDARD |
| CARGO BOX | STANDARD |
| BILGE PUMP | STANDARD |
| ROPS | ACCESSORY |
| STRETCHER FRAME | N/A |
| REAR MESH | N/A |
| ROOF | N/A |
| POWER DUMP BOX | N/A |
| LOAD CAPACITY - LAND | 780 LB (354 KG) |
| LOAD CAPACITY - WATER | 680 LB (308 KG) |
| TOWING CAPACITY | 1,200 LB (544 KG) |
| SEATING CAPACITY - LAND | 6 |
| SEATING CAPACITY - WATER | 4 |
| FUEL CAPACITY | 8.5 GAL (32 L) |
| SPEED - LAND | 16 MPH (26 KM/H) |
| SPEED - WATER | 3 MPH (5 KM/H) |
| WEIGHT | 1,270 LB (576 KG) |
| LENGTH (INCLUDES WINCH WHEN STANDARD) | 126 IN (3,200 MM) |
| WIDTH | 58 IN (1,473 MM) |
| HEIGHT | 51 IN (1,295 MM) |
| AXLE BEARING EXTENSIONS | NA |
| ENTRY STEP | ACCESSORY |
| TIRES | ARGO XT115 24X10-8 |
| WHEEL | STEEL OFFSET |
| GROUND PRESSURE (18" RUBBER TRACKS) | 0.73 PSI (5 KPA) |
| GROUND CLEARANCE (TIRES) | 9 IN (228 MM) |
| GROUND CLEARANCE (TRACKS) | 10 IN (254 MM) |
| WARRANTY | 1 YEAR |
| COLORS | TRUETIMBER PRAIRIE CAMO |
