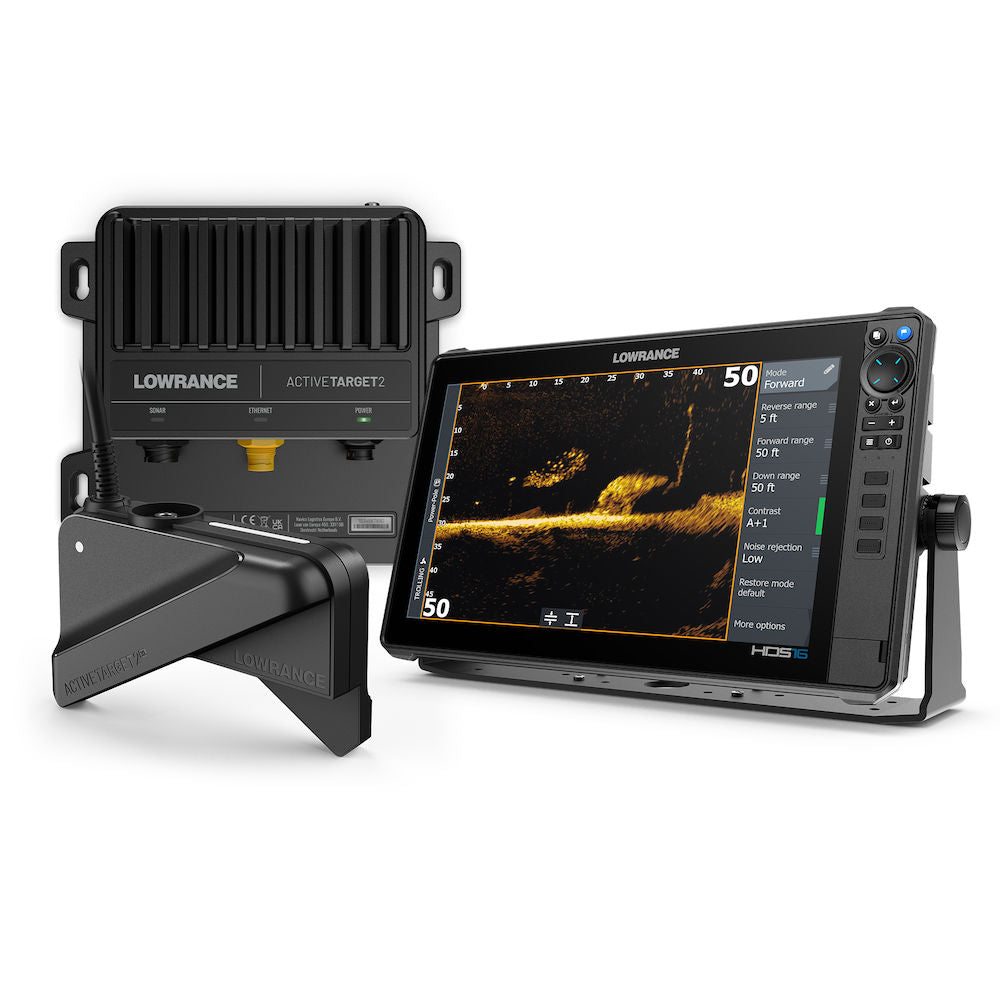

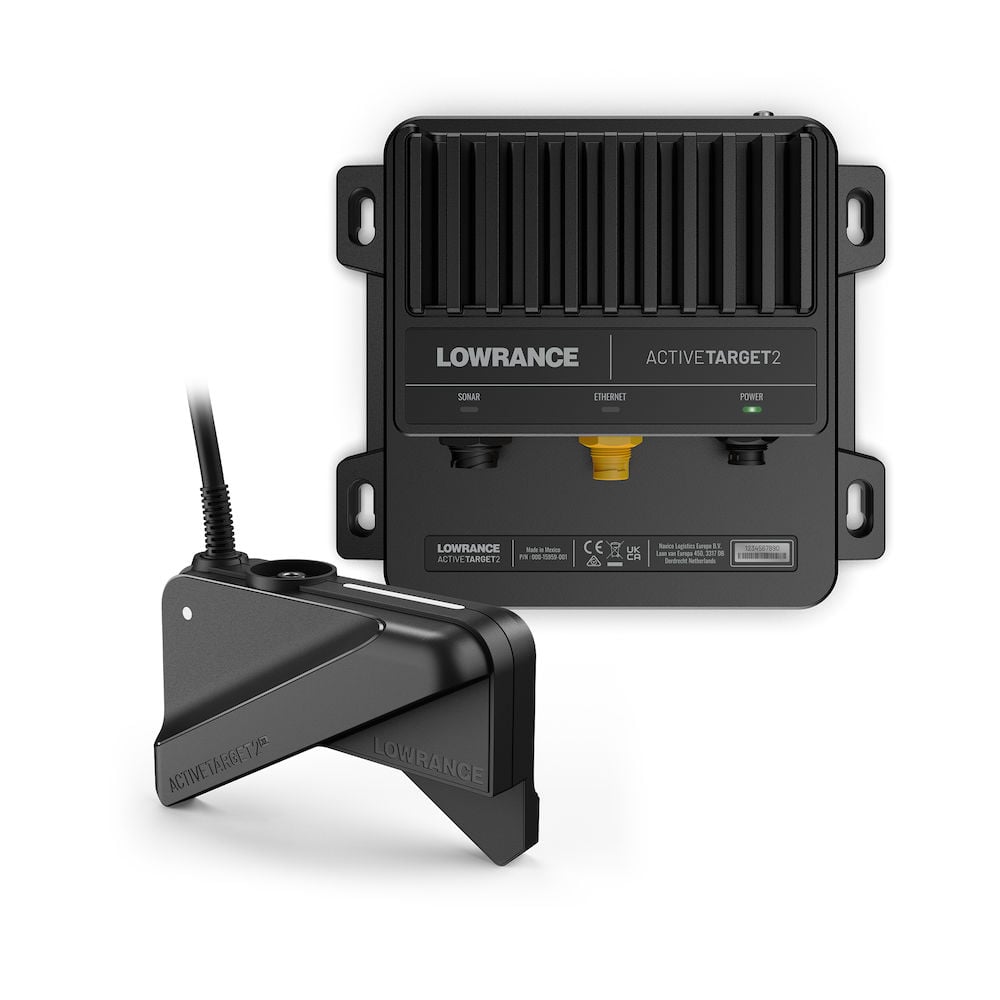

Lowrance ActiveTarget 2 XL Live Sonar — Transducer & Module

See the fish, the cover, and your bait — live, in real time.

Live sonar changed how the Big O gets fished, and the ActiveTarget 2 XL is Lowrance's answer to the biggest complaint anglers had about the first generation: the narrow window. The XL transducer throws a full 180° picture — Forward XL, Down XL, and Scout views off one transducer — so you can sit off an edge and read the whole area in front of you instead of panning around hunting for it. Watch a fish come out of the cover, watch it track your bait, and know right then whether your presentation is working or whether you need to change something.

Run two complete systems on an HDS PRO and you unlock Lowrance's Scout Live 360° view around the entire boat. Already running an ActiveTarget 2 module? The XL transducer works with it, so you can upgrade the picture without replacing the whole system.

• Full 180° coverage — Forward XL, Down XL and Scout modes from a single transducer, no reorienting

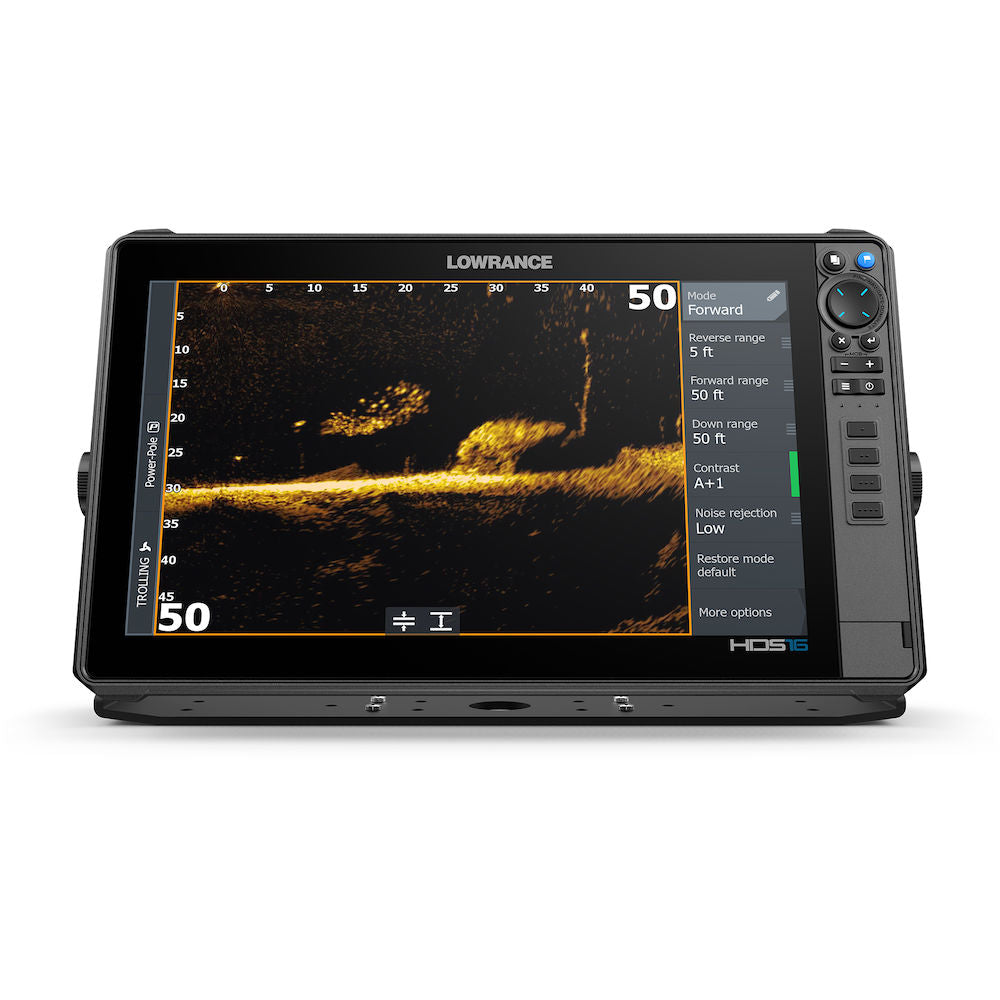

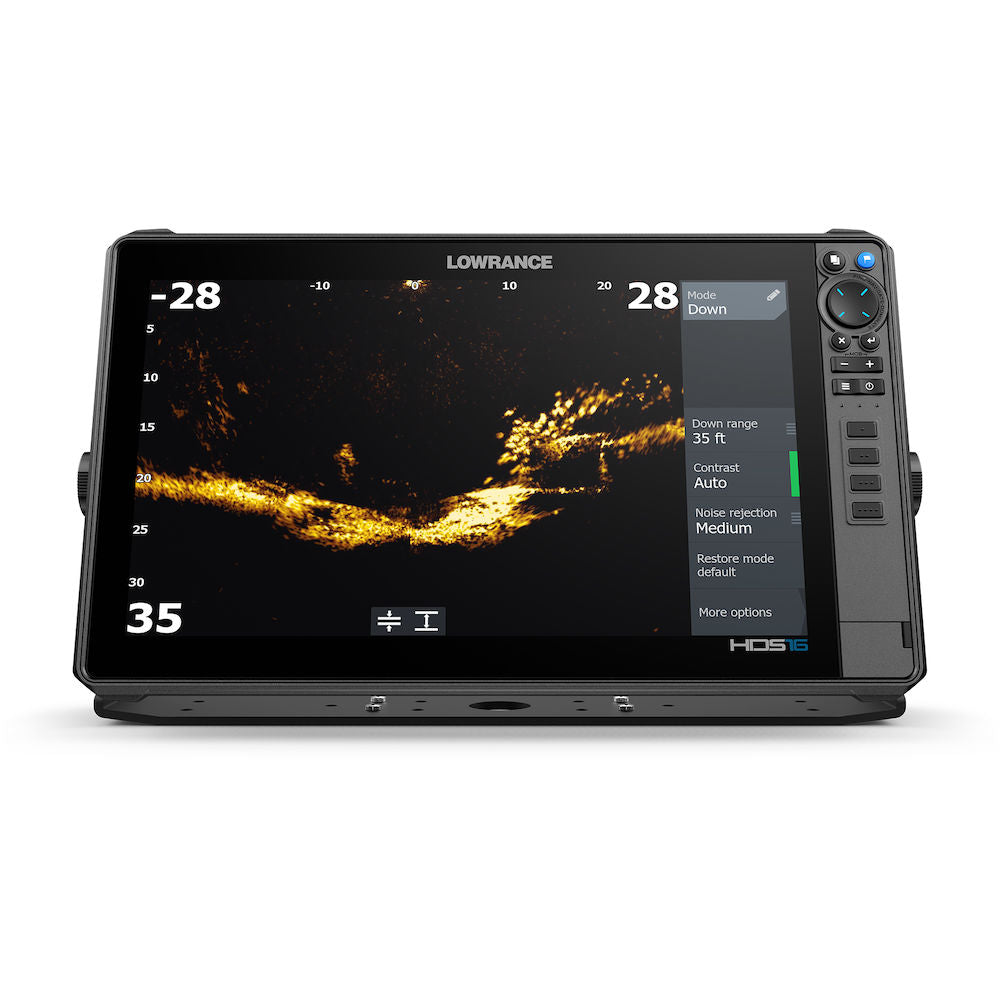

• Switch views on screen — jump between Forward and Down without raising the trolling motor
• Built for rough water — optimized image and stabilization settings hold a clean picture when it's snotty
• Scout Live 360° — combine two XL systems for a full view around the boat (dual transducers and modules required, HDS PRO only)
• Ping sync technology — runs two units without them interfering with each other
• Works with your existing ActiveTarget 2 module

Specs

• Model: ActiveTarget 2 XL Transducer & Module — SKU 000-16488-001
• Frequencies: 650–1300 kHz
• Beamwidth: 20° x 180°
• Max depth: 200 ft (60.96 m)
• Compatible displays: HDS PRO, HDS LIVE, HDS Carbon, Elite FS (Ethernet)
• Connectivity: 1–100 Mbit Ethernet port
• Supply voltage: 10.8–31.2 VDC · 5A recommended fuse
• Power draw: 1.5A @ 13.8 VDC typical · 2.2A @ 10.8 VDC max
• Waterproof rating: IP67
• Module: 8.63" x 7.56" x 2.86" · 4.12 lbs · surface mount
• Transducer: 7.08" x 4.47" x 2.68" · 3.55 lbs · bracket mount
• Warranty: 2 years, plus 3 years of in-service repairs or upgrades

Rigging a new unit or matching it to the graph you already run? Call the shop at 863-484-5113 and we'll walk you through it, or stop in and see us in Okeechobee.
