Bass Cat Bobcat
Bass Cat Bobcat
We built the Bobcat with a price tag and construction technique no other competitor can touch. The innovative design features a huge center rod locker. There’s a massive center rod locker that will never leave you unprepared for the day. The rear deck is large and offers storage for your partner, as well as a tool tray for you to stow gear. It gives a soft ride in a big bodied boat. The hull has some neat tweaks to allow engines from 70 hp to the top end 150 four strokes. Just take your pick and price them accordingly to fit your budget. The Bobcat will handle any task with ease and give you the safety, ride and function at a price others work hard to beat.
SPECIFICATIONS
Length: 17’7″
Width: 90″
HP Range: 70-150
Fuel Capacity: 26 Gal
Rod Box Length: (Center) 8′
Approximate Storage Length:
Engine trimmed down – 23’0″
Engine trimmed down, Tongue Swung – 19’11”
Strength & Performance
Engine and OEM Matched Controls (non Verado)
Slidemaster Jackplate 4-Bolt
26 Gallons of Fuel
Minn Kota Maxxum 70 42′ 24v
Choice of Engine Matched 3 Blade Prop
High Performance 6X Steering Wheel
100% All Fiberglass Hull Construction
SeaStar Hydraulic Steering (Non-Tilt)
16 Ounce Carpet
Center Rod Box – One Organizer
Livewell Pump In
Aerated Livewell
Livewell Pump Out
6X BCB Steering Wheel
Safety, Security & Electronics
Two (2) Helix 7 CHIRP GPS
Minn Kota 4 Bank Charger
Interactive Digital Switch Panel
JL Audio MM50 Media Center w/ 2 6″ Speakers
& 2 Seat Speakers
Phone / I-Pod Holder
Livewell Lights
Analog Quicksilver Gauges (Speed, Tach, Fuel, Trim)
48V Battery Test Gauge
Master Power (2) – At Dash and Crank Battery
Tinned Wire with NEW 6 Gauge Buss wire strip to Console
Security System with Lighted Interior Boxes
Dual (2) 1000 GPH Bilges with Automatic
Billet Aluminum Lighted Hand Rails
Integrated Stainless Steel Boarding Ladder
Battery Tender Trolling Motor Plug
Foam Filled Stringer System
Integrated LED Push Button Deck Lighting
Bass Cat Logo Puddle Light
Siren Marine Boat Monitoring and Tracking System
Docking Light
Aluminum Cowl Vent
Rear Safety Lights
Wake Light
Custom & Comfort
Two Fold Down with 13″ Extension
Recessed Trolling Motor Foot Pedal
Perko Latches with Locks on Storages
Color Matched Gauge Dress Rings
Rod Bungee at Bow
Multiple Cup Holder Locations
Large Insulated Ice Chests
Removable Rear Deck Lid
Fully Insulated Deck Lids
Plastic Battery Trays
Bass Cat Trailers
3″ C Channel frame – US Steel Welded to Fit Construction
Fiberglass Fenders
Black PPG Painted Frame
Single Axle/No Brakes
IMCO Tie Downs
14″ Aluminum Wheels
One PPG Clear Coat
XP Trailer Jack

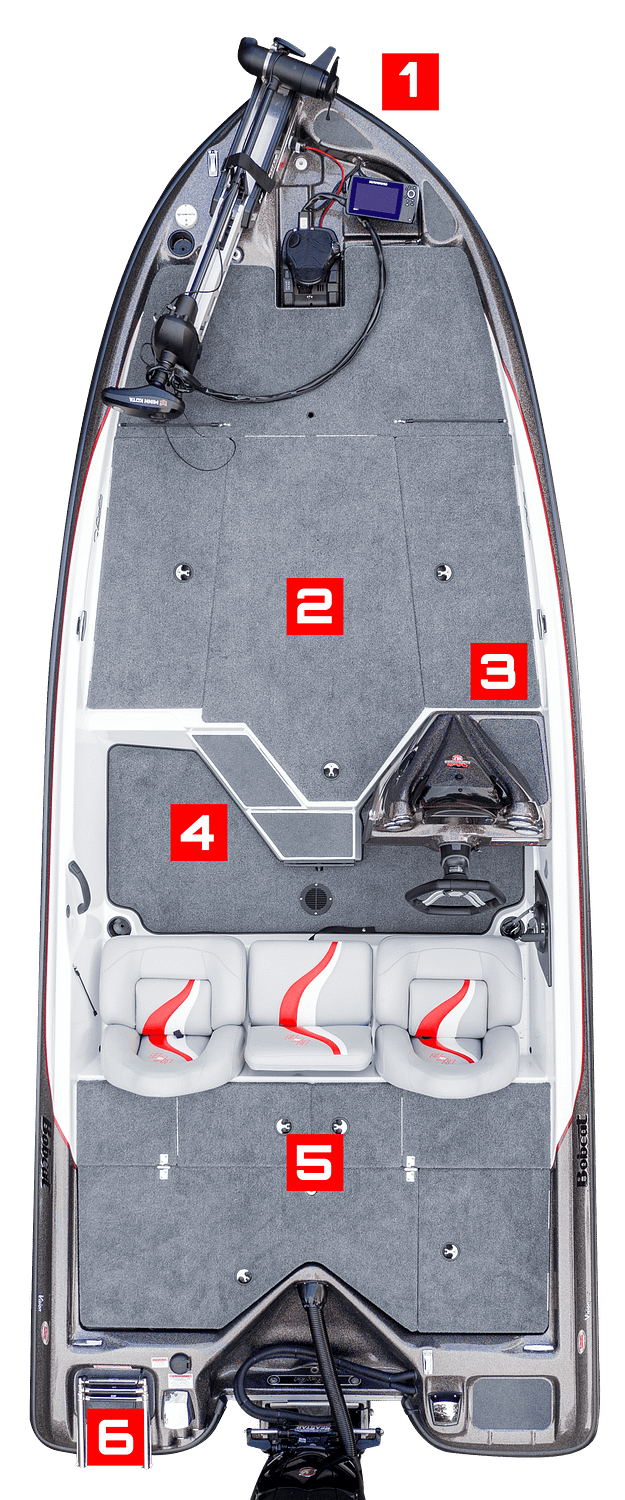

Layout
- Huge center storage for 8 foot rods and tackle
- Ultimate performance without a massive price tag
- 90 inch beam is carried forward to create a large front deck
- Carries a variety of engines from 70 – 150 hp
- Same construction techniques of our Premium models
1. Wide front deck with recessed pedal/electronics basin
2. 8′ Rod box with additional storage underneath
3. Padded rod ramp along starboard rail
4. Ergonomic double step to front deck
5. Extra large rear starboard deck storage with high capacity livewell
6. Easy access boarding ladder
